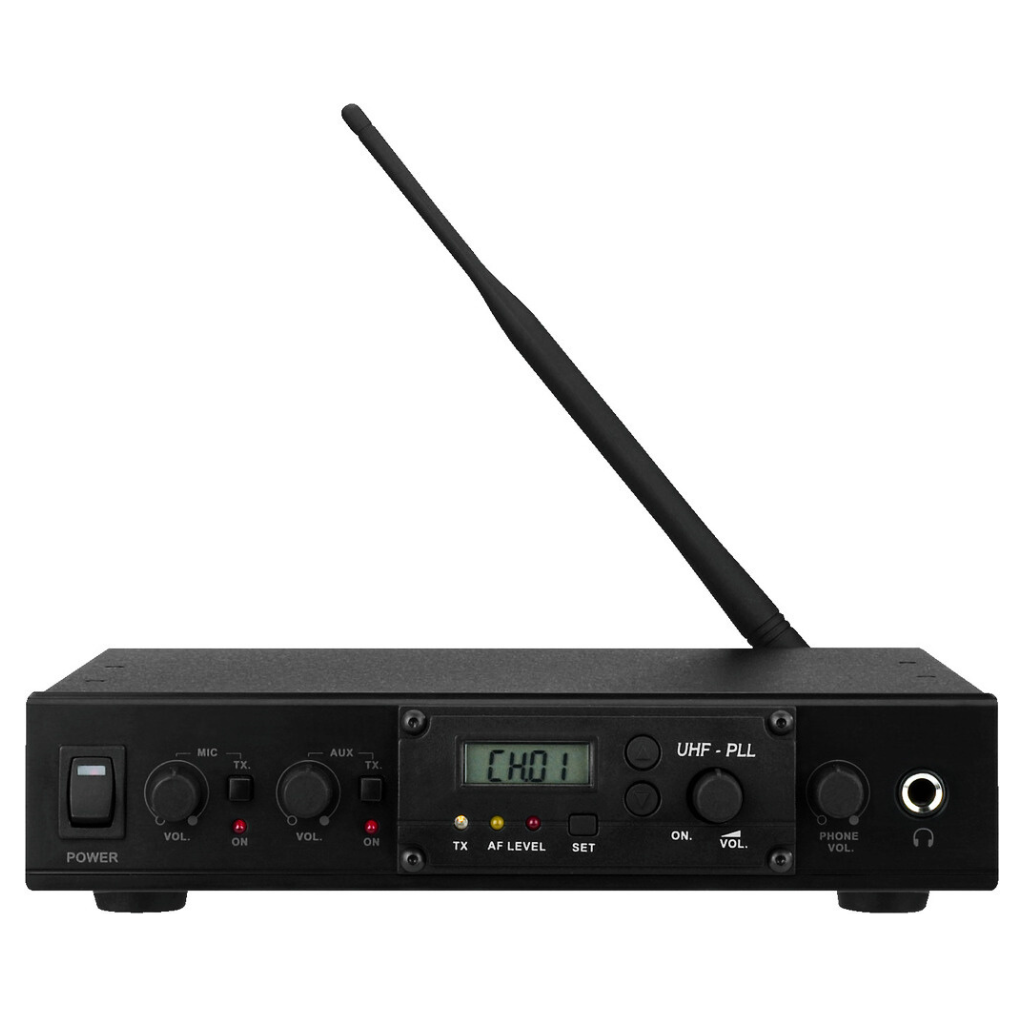

Commentary System Transmitter

Commentary System Transmitter

£349.00 GBP
£349.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

This compact table top transmitter features LINE /MIC inputs, a LINE output and has a range of 30 metres.

This transmitter is designed to work with a commentary system.

Our tour guide products are licence-free and come with a 2 year manufacturer's warranty.

Transmitter Specification

16-channel PLL transmitter, for microphone operation and line audio signals.
Audio stereo line input via RCA L/R
Balanced XLR microphone input and 6.3 mm microphone input
Audio mono line output via RCA
Adjustable headphone output
Backlit LCD for indicating channel/frequency, LEDs for carrier frequency, signal and signal peak
Additional DC voltage output 10-15 V DC for connecting an additional transmitter
482 mm (19") rack installation of 2 devices is possible with supplied mounting brackets
Power is provided via enclosed plug-in power supply
Dimensions: 215 x 50 x 210 mm
Weight: 1.25 kg

General information
Description transmitter unit
Carrier frequency range 863.1-864.9 MHz
Channels 1
Admiss. ambient temp. 0-40 °C
Specifications transmitter
Transmitting power 10 mW
Operating range approx. 30 m
Power supply transmitter via encl. plug-in power supply
Width transmitter 215 mm
Height transmitter 50 mm
Depth transmitter 210 mm
Weight transmitter 1.25 kg
Connections transmitter 1 x XLR, bal. (mic in),
1 x 6.3 mm jack, unbal. (mic in),

1 x RCA L/R (line in),

1 x RCA L/R (line out)

Delivery

We offer the following shipping options at checkout;

  • Free Shipping - Up to 7 working days
  • Standard - 2-3 working days £6.50
  • Express - Next working day for orders placed before 2PM £12.00

Any orders placed over the weekend, will be processed from the Monday, excluding bank holidays.

View full details
