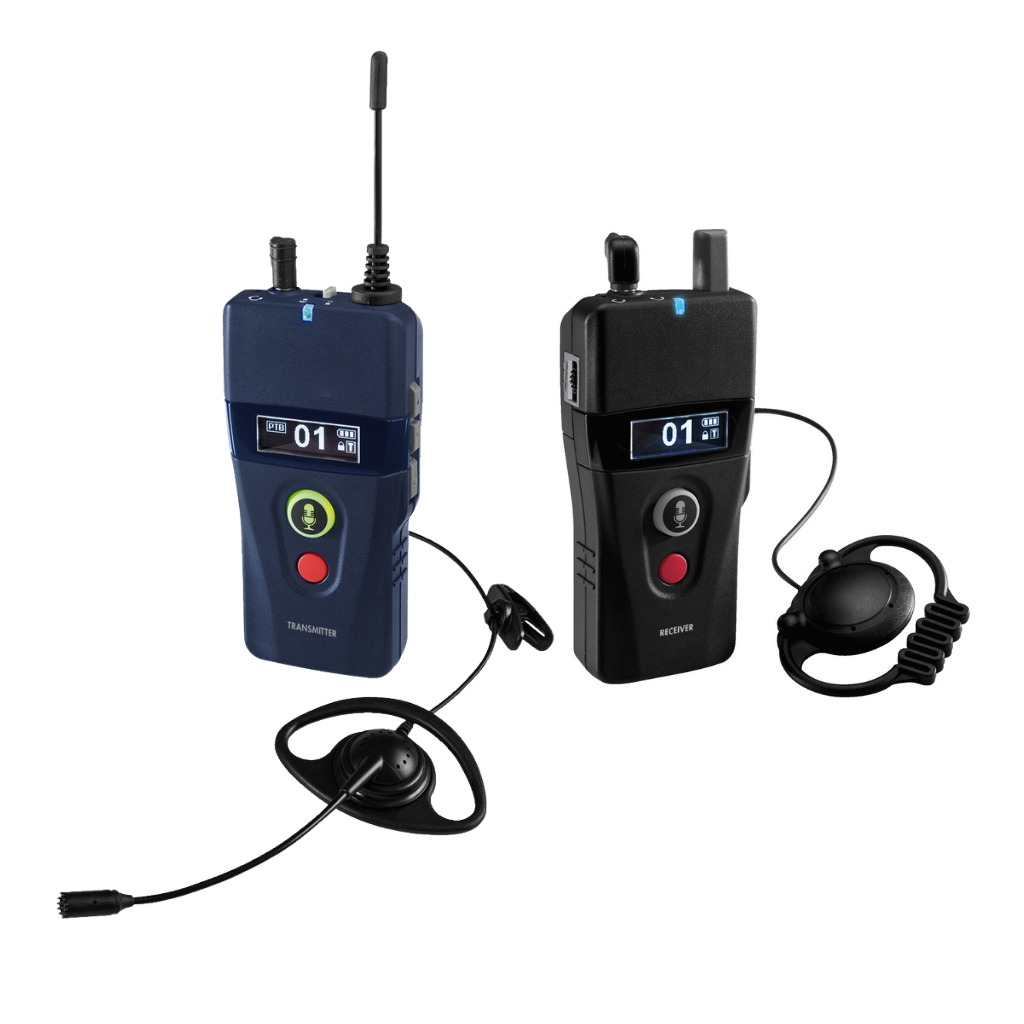

Premium 2-Way Tour Guide System

ATS-80T
42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz
As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
High resistance to interference due to digital transmission
High operating range
Frequency range optimised for voice transmissions
Interference-free parallel operation of up to 42 different channels possible
42-channel PLL transmitter, for microphone operation and audio line signals.
3 different operating modes: guiding, lecturing and discussions for versatile applications
Integrated microphone, adjustable gain
Supplied with additional earphone microphone
Audio line input via 3.5 mm stereo jack
High-contrast OLED display
Battery status indication
Priority assignment
Alarm function
Talk/mute button
Call button
Channel lock
Full-duplex communication
Attendance monitoring
Belt clip
Lanyard
Adjustable transmitting power (high: ≤ 20 mW/low: ≤ 10 mW)
Operating range: approx. 100 m
Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
Dimensions: 47 x 97 x 35 mm
Weight: 53 g
General information
Description 42-channel digital PLL transmitter
Carrier frequency range 823-832 MHz, 863-865 MHz
Admiss. ambient temp. 0-40 °C
Specifications transmitter
Transmitting power ≤ 20 mW/≤ 10 mW
Operating range 150 m
Power supply transmitter 2 x 1.2 V NiMH rech. batt. AA size
Width transmitter 47 mm
Height transmitter 97 mm
Depth transmitter 35 mm
Weight transmitter 53 g
Connections transmitter 3.5 mm jack (microphone/headset),
3.5 mm jack (line in)

ATS-80R
42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz
As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
High resistance to interference due to digital transmission
High operating range
Frequency range optimised for voice transmissions
Interference-free parallel operation of up to 42 different channels possible
42-channel PLL receiver
Supplied with matching earphone
Adjustable headphone output
Automatic switch-off (power-saving function)
High-contrast OLED display
Battery status indication
Push-to-talk button with 3 operating modes (PTT, PTB, PTM)
Alarm-off button
Operating range alert
Call alert
Mute function
Automatic channel lock
Built-in microphone
Full duplex communication (release by transmitter)
Hearing Aid Compatible (HAC)
Belt clip
Lanyard
Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
Dimensions: 47 x 109 x 35 mm
Weight: 53 g
General information
Description 42-channel digital PLL receiver
Carrier frequency range 823-832 MHz, 863-865 MHz
Audio frequency range 300-4,500 Hz
Admiss. ambient temp. 0-40 °C
Specifications receiver
Power supply receiver 2 x 1.2 V NiMH rech. batt. AA size
Width receiver 47 mm
Height receiver 109 mm
Depth receiver 35 mm
Weight receiver 53 g
Connections receiver 3.5 mm jack (earphones)
