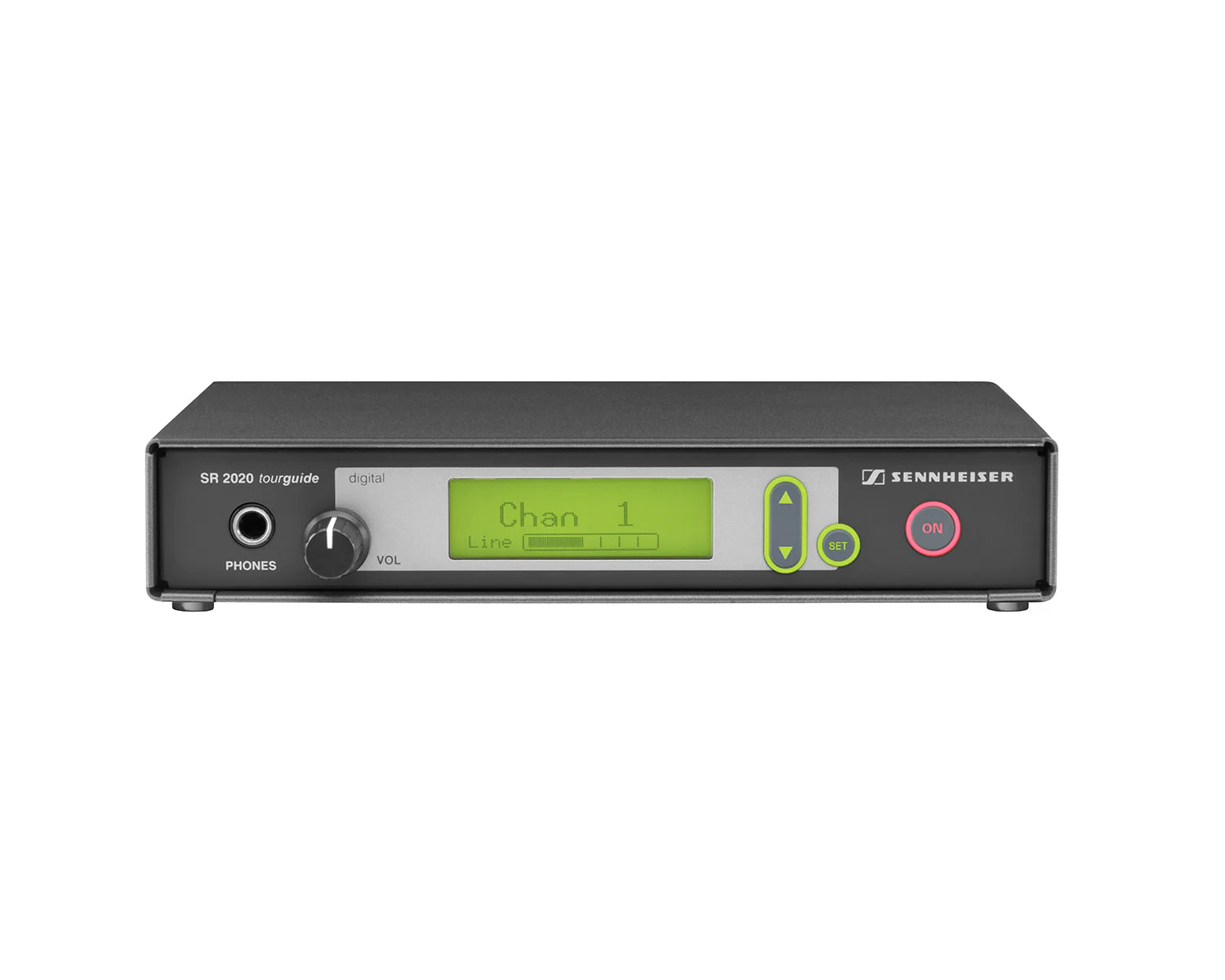

Sennheiser SR2020D TourGuide Digital 8Ch Fixed Transmitter

Sennheiser SR2020D TourGuide Digital 8Ch Fixed Transmitter

£969.00 GBP
£969.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SR 2020-D, multiply gifted! For each of your productions, the compact high-tech transmitter SR 2020-D will provide perfect audio in exactly the right way. It allows for conferences or presentations to be interpreted simultaneously in up to 8 languages. Other audio content can be selected from CD, DVD or your IT network. Of course, you can connect microphones for announcements, and the system will even follow you on bus or boat tours.

The transmitter is operated very easily and comfortably. Important parameters such as channel selection and line/mic input levels can be checked on the back-lit display.

  • Digital RF signal transmission
  • License-free Frequency range
  • 19" rack-mount kit included
  • 6-8 Channel Transmitter
  • Balanced XLR-3F-Input with switchable phantom-power (48V)
  • 6,3mm jack-plug headphones connection for monitoring
  • Backlit display

This transmitter is designed to work with the Sennheiser 1-way tour guide system (only the presenter can talk).

Our tour guide products are licence-free and come with a 2 year manufacturer's warranty.

Transmitter Specification

Modulation: 2 FSK
RF frequency range: 863 - 865 MHz
Number of channels (tourguide mode): 6
Number of channels (conference mode): 8
Frequency response: 100 – 7,000 Hz
Signal-to-noise-ration: > 70 dBA
THD at 1 kHz: < 1 %
Input voltage range:
160 mV - 25 V (Line)
2 mV - 125 mV (Mic)
Phantom Powering: 48 V
Current consumption: max 300 mA
Operating temperature: 0 – 50 °C
Range Indoor: up to 50 m (16404 ft)
Range Outdoor: up to 100 m (32808 ft)
Weight: 1100g (2,43 lb)
Dimensions WxHxD: 212 x 145 x 38 mm (8,35“ x 5,71“ x 1,5“)
